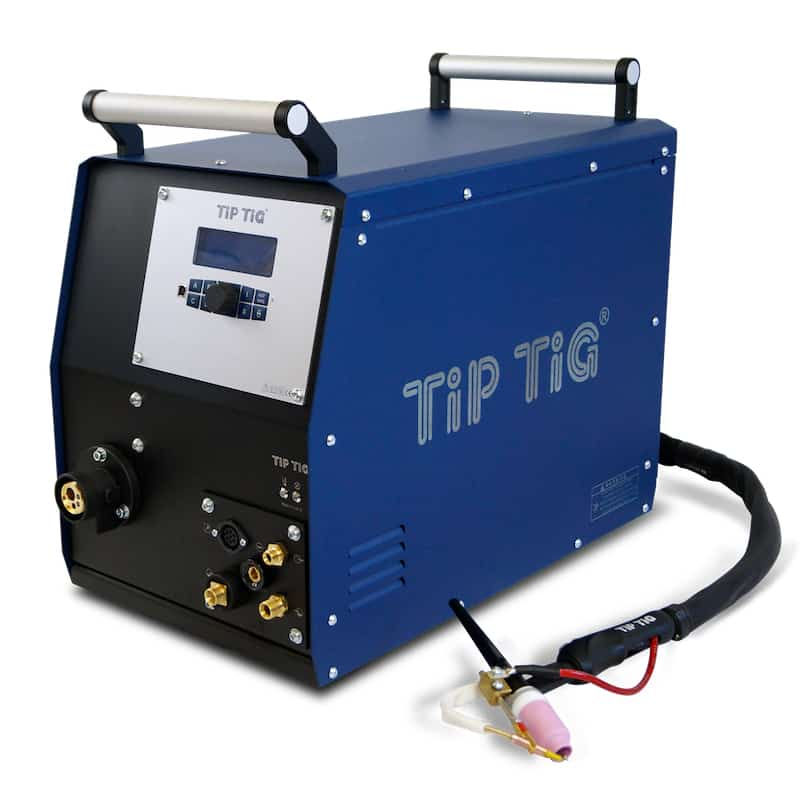

• TIG cold wire and hot wire welding with dynamic wire feed system

• Active wire feeding for a controllable weld pool even with positional welding.

• Up to 300% faster welding speeds compared to TIG welding.

• Up to 400% improvement in deposition rate.

• Dilution is reduced by up to 80%.

• High process reliability and reproducible welding results.

• Higher welding speed and easy handling.

• Heat supply to the wire for improved deposition rate and an even lower risk of weld errors.

• Perfect weld appearance, no weld spatters.

• 4-Roll drive for a max wire diameter (solid) of 3/64 in (1.2 mm).

• The AllinOne wire feeder can be used with any TIG welding machine.

Weldable Materials

• Aluminum

• Specialty Metals

• Stainless Steel

• Steel

Line voltage

110/115/120V AC 220/230/240V AC

Frequency

50Hz to 60Hz, single phase

Wire feed speed range

5.6 to 670 IPM (0.15 to 17 m/min)

Dimensions (H x W x D)

20.66 in x 13.85 in x 23.62 in (525 mm x 352 mm x 600 mm)

Net weight

74 lbs (34 kg)
